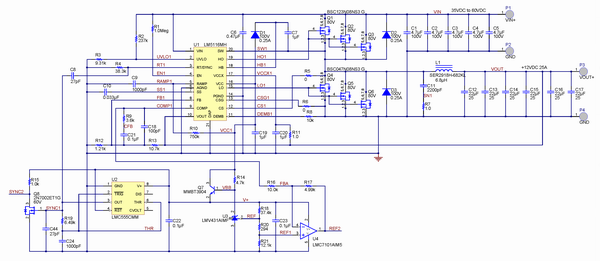

This 600W wide voltage input dual phase power converter uses two emulated current-mode controllers 180 degrees out of phase to minimize input and output ripple current. Compared to conventional isolated power converters, this synchronous buck architecture provides a reduced footprint and BOM cost at higher levels of efficiency, greater than 97% over several operating conditions.
Features
- Two-phase buck converter
- 600W output power
- 35V to 60V maximum input voltage range
- Output voltage of 12V at 50A

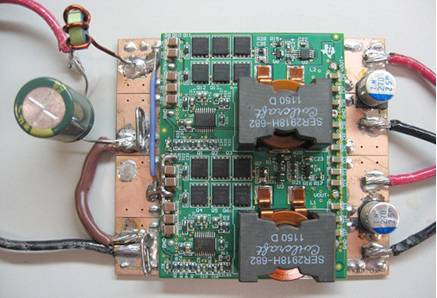

- This reference design board is tested and supported with design files and an application note
Source: http://www.ti.com/tool/PMP7282?DCMP=pwr_lab_sm&HQS=pwr-lab-pmp7282
