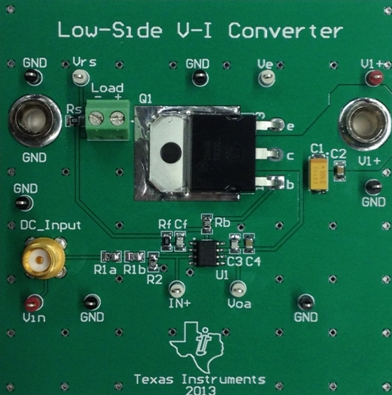

This Verified Design provides the theory, component selection, simulation, PCB design, and measurement details for a low-side voltage-to-current (V-I) converter. The circuit delivers a well-regulated current to a floating load which could include actuators, sensors, motors, LEDs, and many other applications. The design uses the OPA735 small-signal op amp to control an NPN emitter-follower that sources current to the load. The current is accurately regulated by feeding back the voltage drop across a low-side current-sense resistor to the op amp. The rail-to-rail input/output topology of the OPA735 allows for good accuracy even at low currents because there is very little "dead-zone" in either the input or output stage. The auto-zero zero-drift technology in the OPA735 allows for great DC performance over temperature.
Features
- Converts Voltage to current: 0 to 5 V, 0 mA to 500 mA
- 1 % Error
- Single-supply solution with rail-to-rail input op amp
- Good compliance voltage to the both rails
- Design allows for a floating load
- Excellent DC performance and temperature drift using zero-drift OPA735 op amp
